角度切斷機和工作台

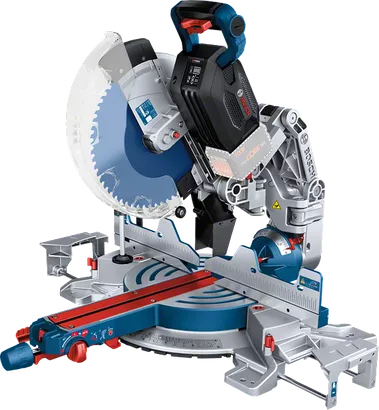

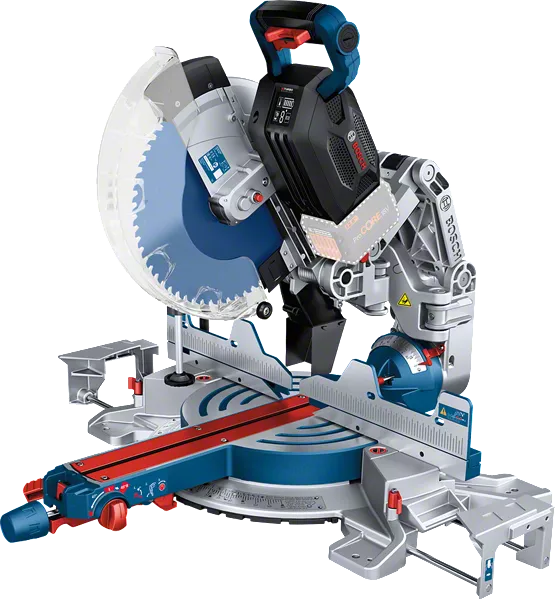

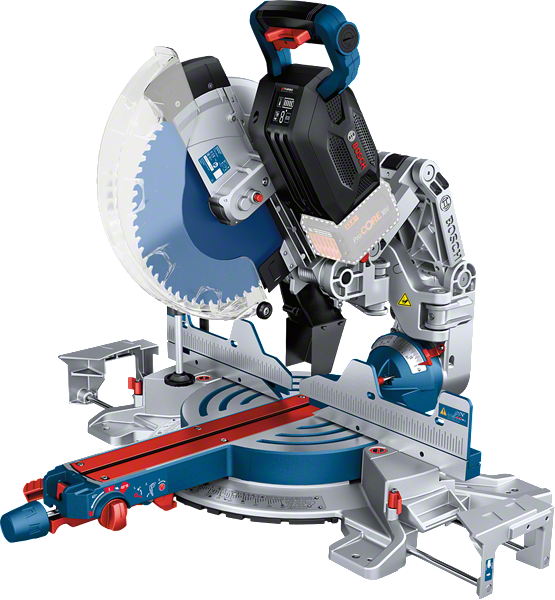

Bosch 18V-305 GDC 無線滑動斜切鋸。

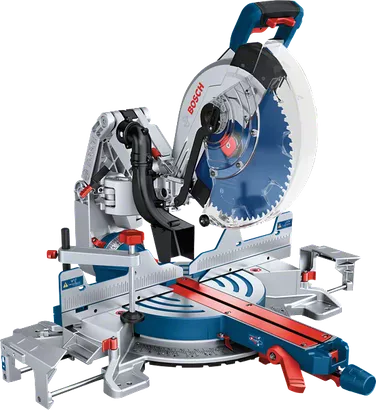

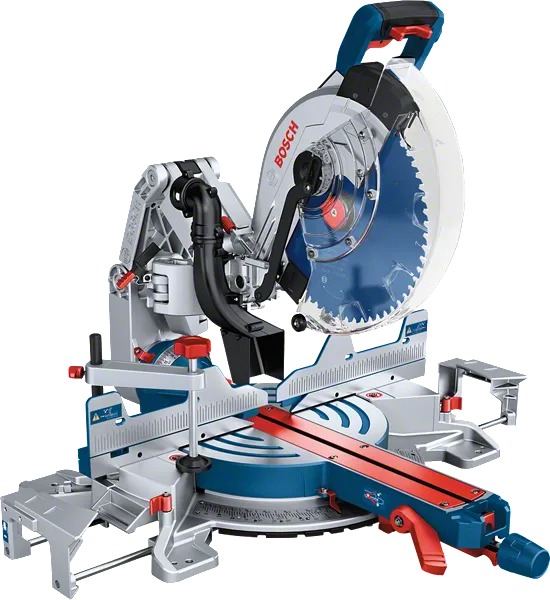

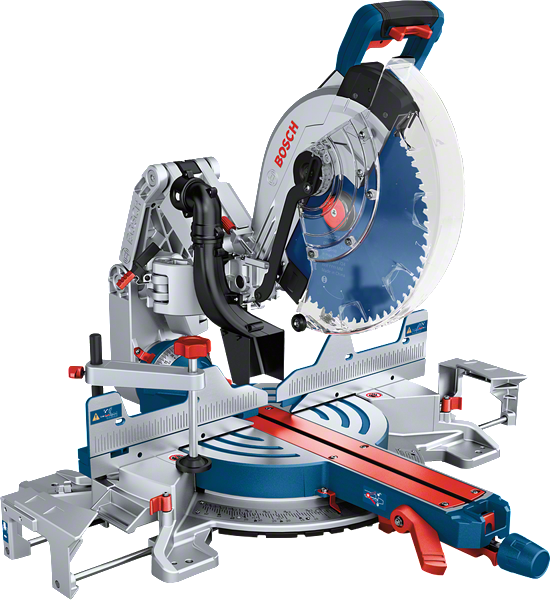

Bosch 18V-305 GDC 無線斜切鋸,配備 305 毫米刀片。
GCM 18V-305 GDC

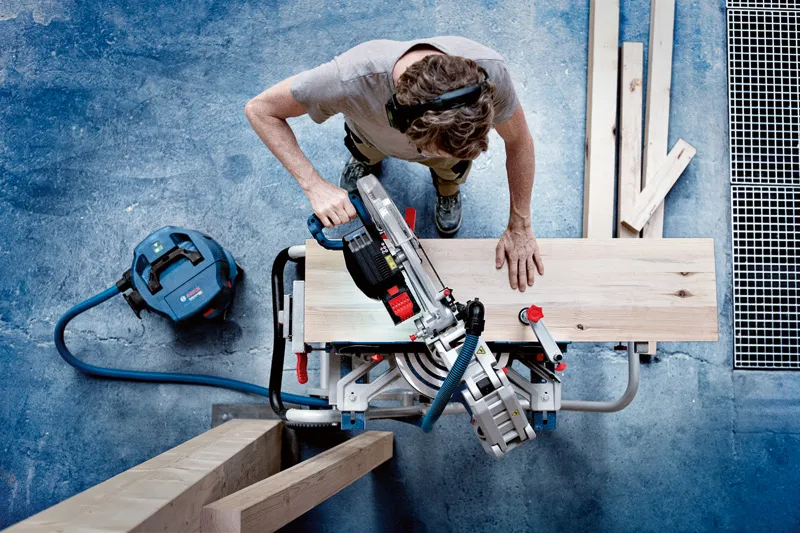

一名配戴安全裝備的人正在用無線斜切鋸切割木板。
一名配戴安全設備的人員在工作台上操作無線斜切鋸。

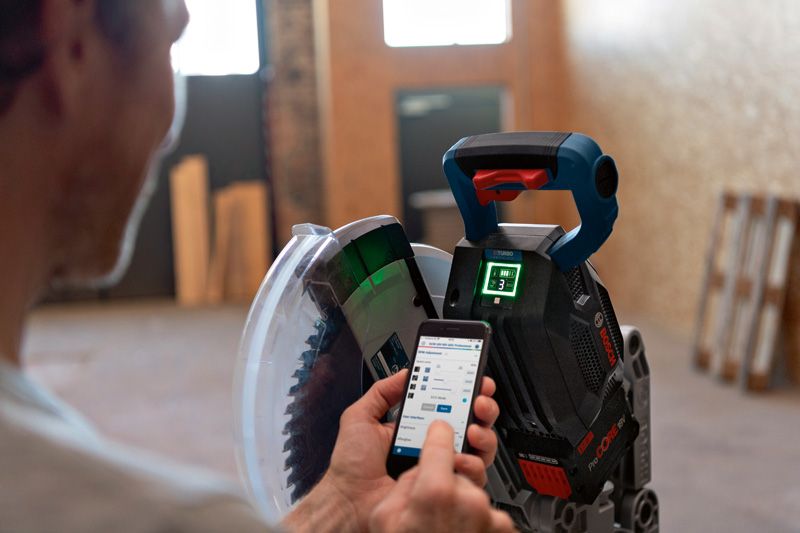

一名工人在室內車間使用智慧型手機調整無線斜切鋸。

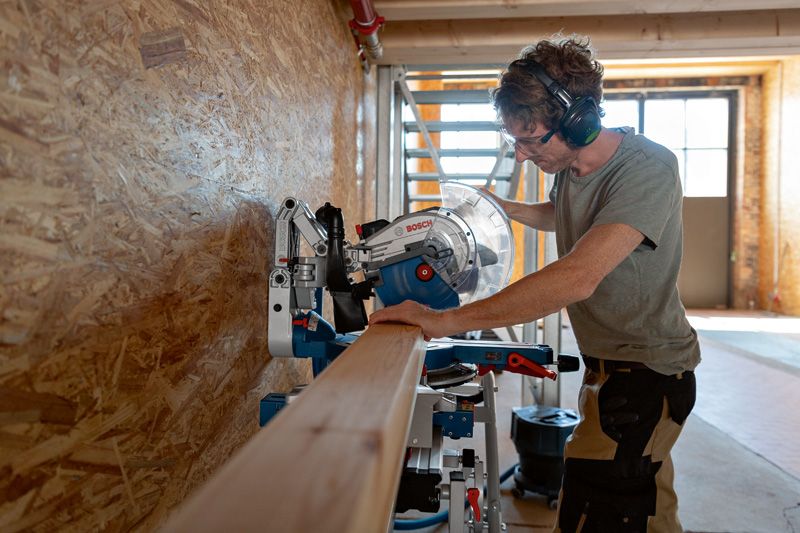

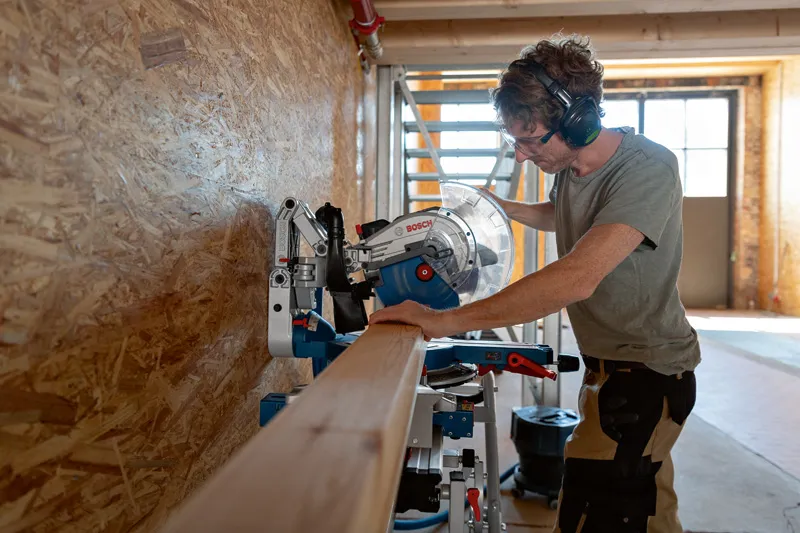

一名配戴安全裝備的人員使用無線斜切鋸切割木樑。

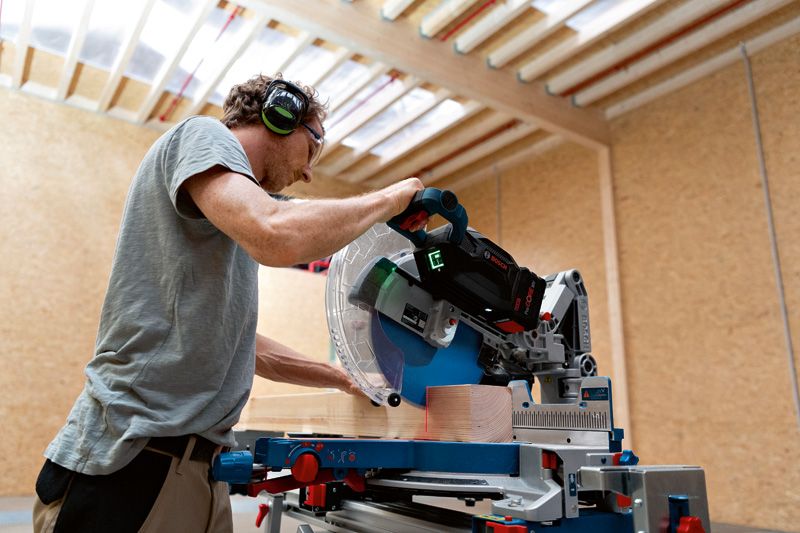

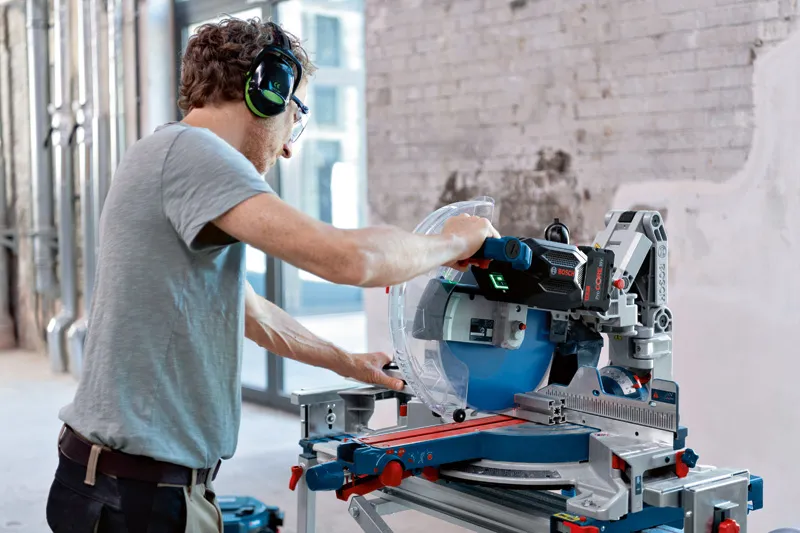

一名配戴安全設備的人員在室內使用無線斜切鋸切割木材。

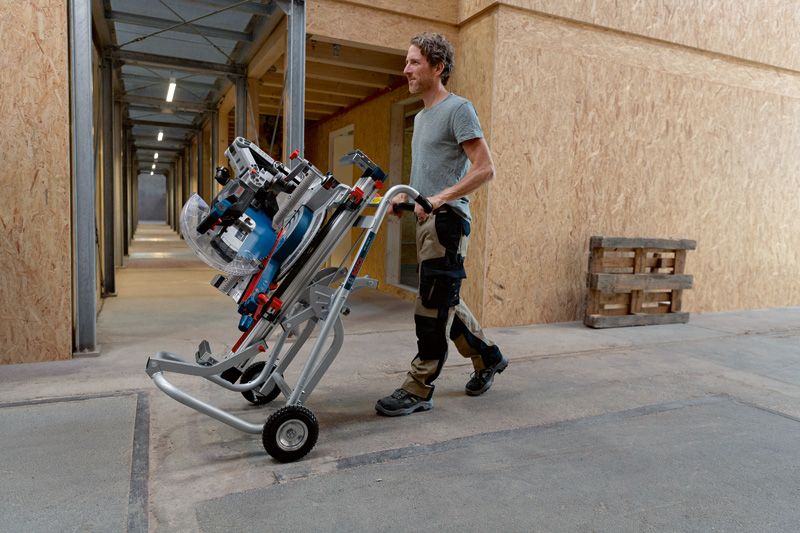

一名佩戴安全設備的人員在室內移動放在帶輪支架上的無線斜切鋸。

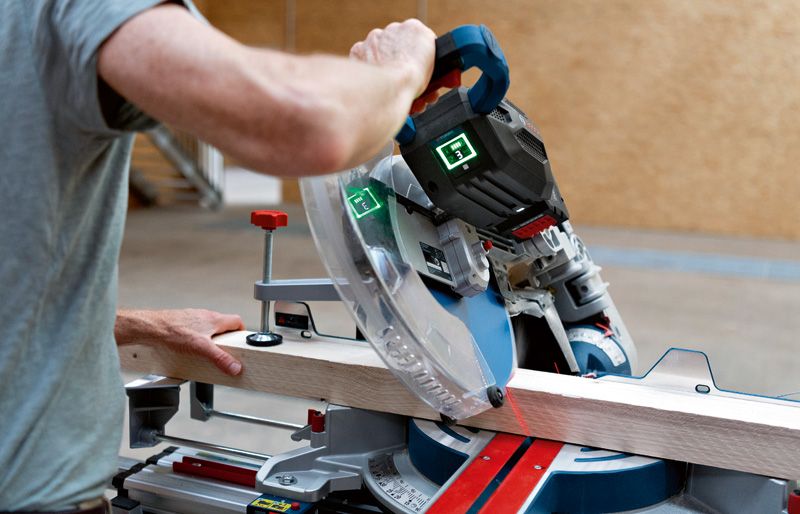

一名工人操作無線斜切鋸在工作台上切割木板。
AMPShare電池

GCM 18V-305 GDC Professional

充電式角度切斷機BITURBO

專業18V系統
BiTurbo無刷
重負
AMPShare

The combination of impressive cutting performance and full cordless flexibility

  • Brushless motor powered by ProCORE18V battery delivers cordless power equal to 2000 W corded mitre saw
  • User Interface and connectivity for battery status check; speed selection including ECO mode
  • Tool-less saw blade change; upfront bevel control; motor brake; space-saving glide arm for safe and convenient operation

功能與主要特色

節省空間的滑動臂
2000W當量
使用者介面
無需工具
LED燈

您的選擇

  • 紙板箱內含配件組
顯示款式
44,500.00 TWD
建議零售價 (含加值稅)
尋找當地經銷商

紙板箱內含配件組 0 601 B43 0K0
44,500.00 TWD
建議零售價 (含加值稅)

GCM 18V-305 GDC Professional

您的選擇

Bosch 18V-305 GDC 無線滑動斜切鋸。
紙板箱內含配件組

訂貨編號: 0 601 B43 0K0

44,500.00 TWD
建議零售價 (含加值稅)
尋找當地經銷商

此版本包含

  • 插入板(1 609 B02 375)
  • SDS鋸片鎖(備品編號1 609 B05 323)

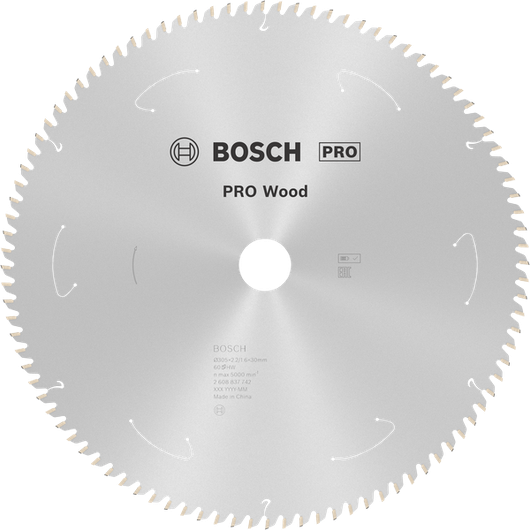

  • 1片充電式圓鋸機刀片,Expert for Wood,305 x 2.2 /1.6 x 30 mm,60(2 608 644 528)
  • 夾鉗(1 609 B06 203)
  • 紙板箱
  • 集塵袋(備品編號1 609 B05 010)
  • 內六角(備品編號1 609 B00 256)

技術資料

其他資料

電池電壓
18.0 V
鋸片直徑
305 mm
角度設定
52 ° L / 60 ° R
傾斜設定
47 ° L / 47 ° R
重量
26.6 kg
切割能力,0°
104 x 341 mm
0°的切割能力(含間隔器,最大垂直)
120 x 200 mm
0°的切割能力(含間隔器,最大水平)
45 x 400 mm
切割能力,45°角度
104 x 240 mm
切割能力,傾斜45°
40 x 341 mm

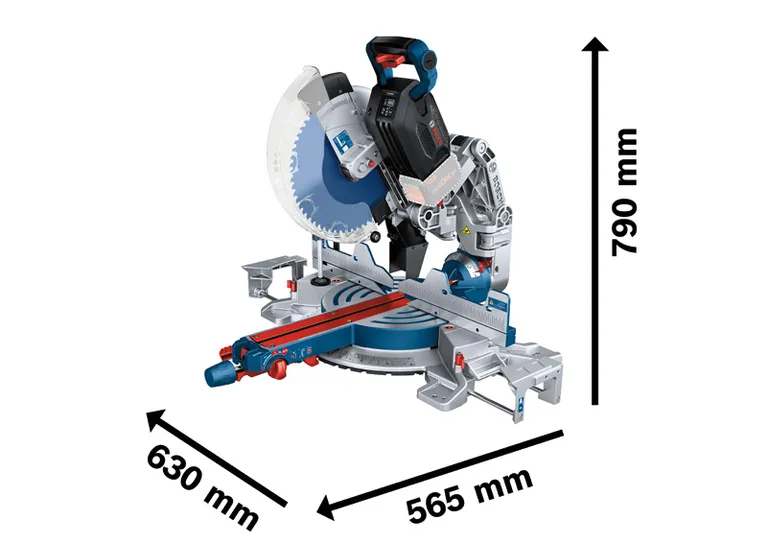

工具尺寸(寬 x 長 x 高)
565 x 630 x 790 mm
空載速率
2,550 – 4,000 rpm
鋸片內孔直徑
30 mm
Bosch 18V-305 GDC 無線斜切鋸,配備 305 毫米刀片。

* 關於誤差的詳細資訊,請參考以下連結: WAC

GCM 18V-305 GDC Professional:進一步資訊

產品重點

The GCM 18V-305 GDC Professional BITURBO cordless mitre saw offers powerful cutting depth with cuts up to 120 mm. Fully optimised for the ProCORE18V technology, the mitre saw’s brushless motor delivers cordless power equal to 2000 W corded mitre saw. This saw offers a User Interface as well as connectivity for quick battery status check and speed selection including ECO mode. Features like tool-less saw blade change, upfront bevel control, and motor brake enhance the safety of the saw.

設備與應用

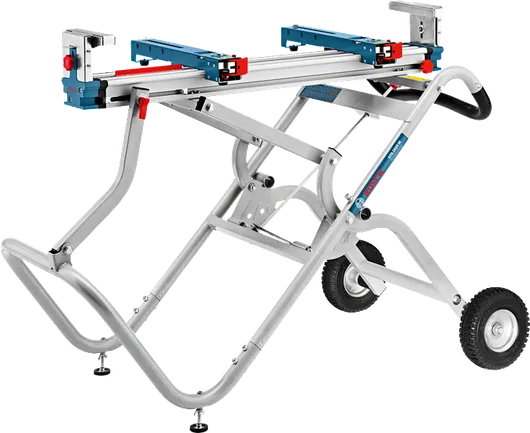

The tool is ideal for compound cutting as well as a broad range of materials. The saw can be mounted on multiple Bosch GTA stands. This mitre saw is compatible with all Bosch Professional 18V batteries and chargers (Professional 18V System), for maximum power use ProCORE18V ≥ 5.5 Ah. Also compatible with AMPShare, the multi-brand battery alliance.

其他資訊

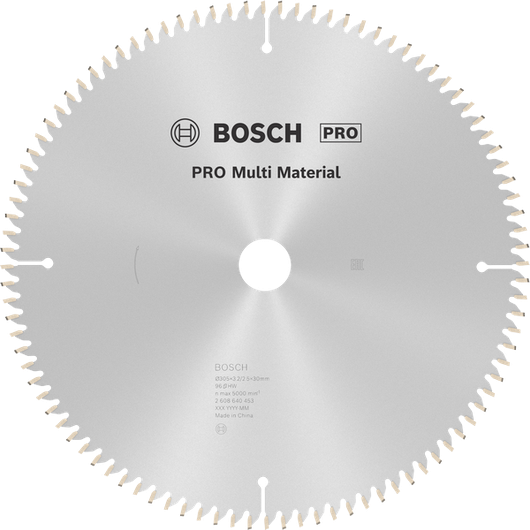

The GCM 18V-305 GDC Professional delivers full power with just one battery, also in tough applications. Speed selection and Bosch´s wide saw blade range make this mitre saw perfectly suitable for working with almost any material.
