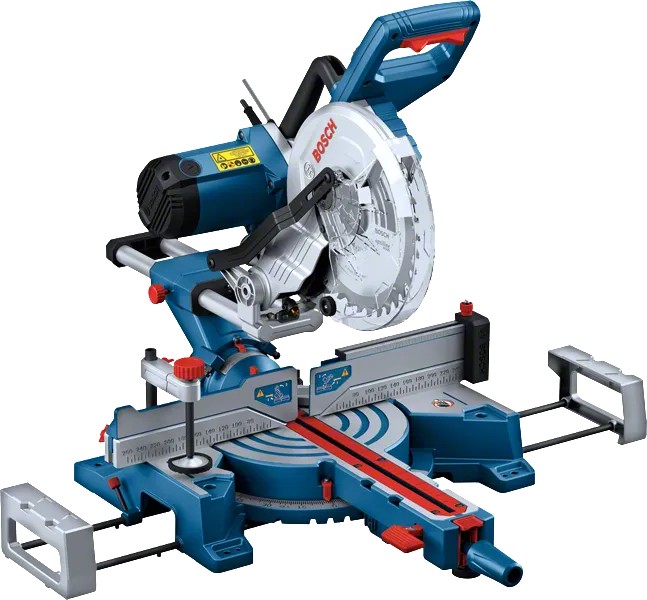

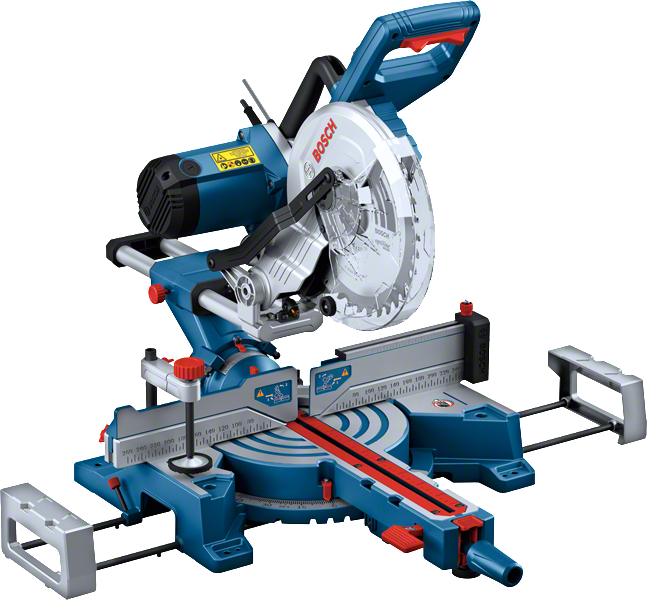

![Bosch 254 D 斜切鋸，附可調式角度導引裝置。]( "GCM 254 D")

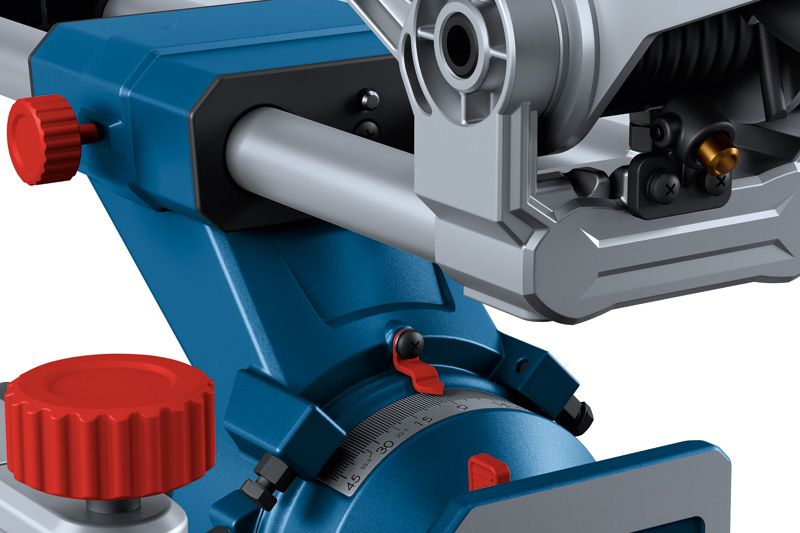

![Bosch 254 D 斜切鋸，具有精確的角度調節功能]( "GCM 254 D")

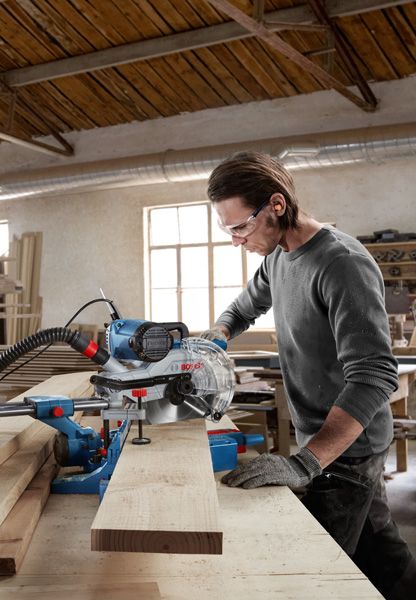

![一名配戴安全設備的人員在車間使用斜切鋸切割木材。]( "GCM 254 D")

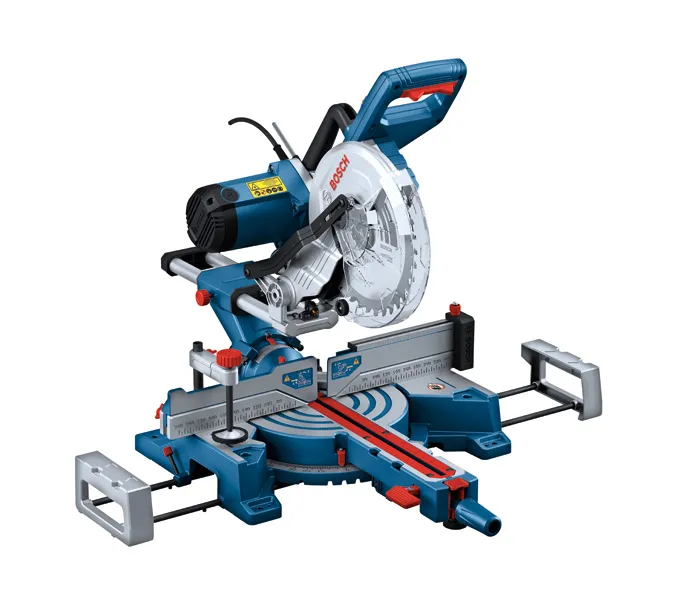

![Bosch 254 D 斜切鋸，附可調式角度導引裝置。]( "GCM 254 D")
![Bosch 254 D 斜切鋸，具有可調切割角度。]( "GCM 254 D")
新上市

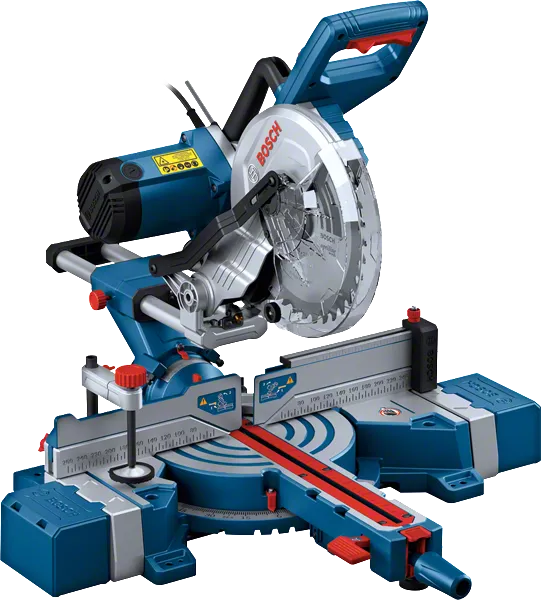

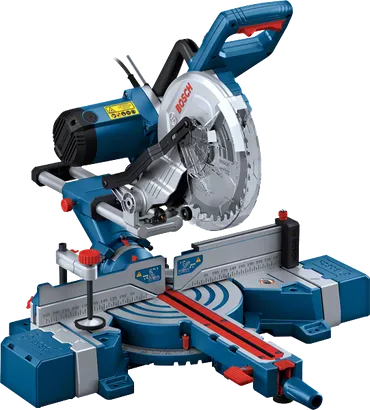

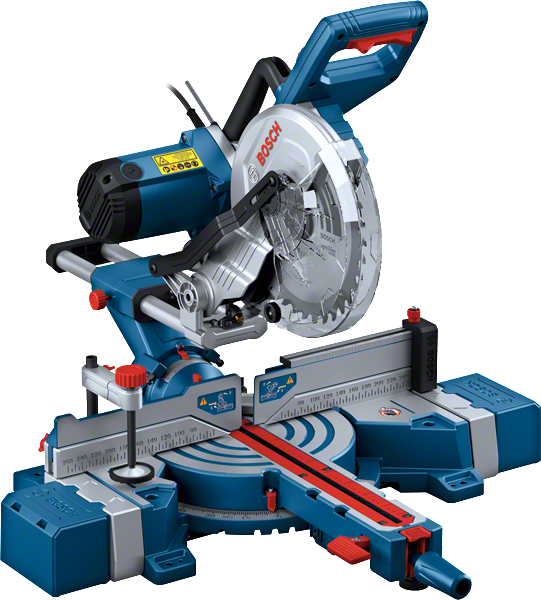

GCM 254 D Professional
角度切斷機
Long-lasting accuracy in every cut
- Consistently accurate cuts with the help of a highly visible laser line
- Better support for various material cutting provided by detachable box extension
- Easier multiple repeating cuts thanks to length gauge
- Larger cuts with superior precision with 310 mm sliding capacity
功能與主要特色
GCM 254 D Professional
0 601 B53 0C0
GCM 254 D Professional
技術資料
其他資料
額定輸入功率
1,800 W
鋸片直徑
254 mm
角度設定
47 ° L / 52 ° R
傾斜設定
45 ° L / 45 ° R
鋸片內孔直徑
25.4 mm
切割能力，0°
90 x 310 mm
切割能力，斜接45°
90 x 210 mm
切割能力，傾斜45°
45 x 310 mm
工具尺寸（寬 x 長 x 高）
574 x779 x645 mm
空載速率
4,800 rpm
重量
17.9 kg
* 關於誤差的詳細資訊，請參考以下連結：
GCM 254 D Professional:進一步資訊
產品重點
The GCM 254 D Professional corded miter saw is tough, best-in-class, and designed for easy operation, accurate repetitive cutting, and a long life. For superior precision, a highly visible laser indicates the cutting line and easily allows consistent cuts. Cutting long and large materials with higher stability and accuracy is supported by the detachable box extension. Convenient easy cutting of the same lengths is provided by the length gauge. Lager cuts with superior precision are supported by the 310 mm sliding capacity.
設備與應用
The GCM 254 D miter saw is built for long life with repetitive, accurate cutting of wood and aluminium, and is ideal for carpenters, glaziers, roofers, and other professional trades.
